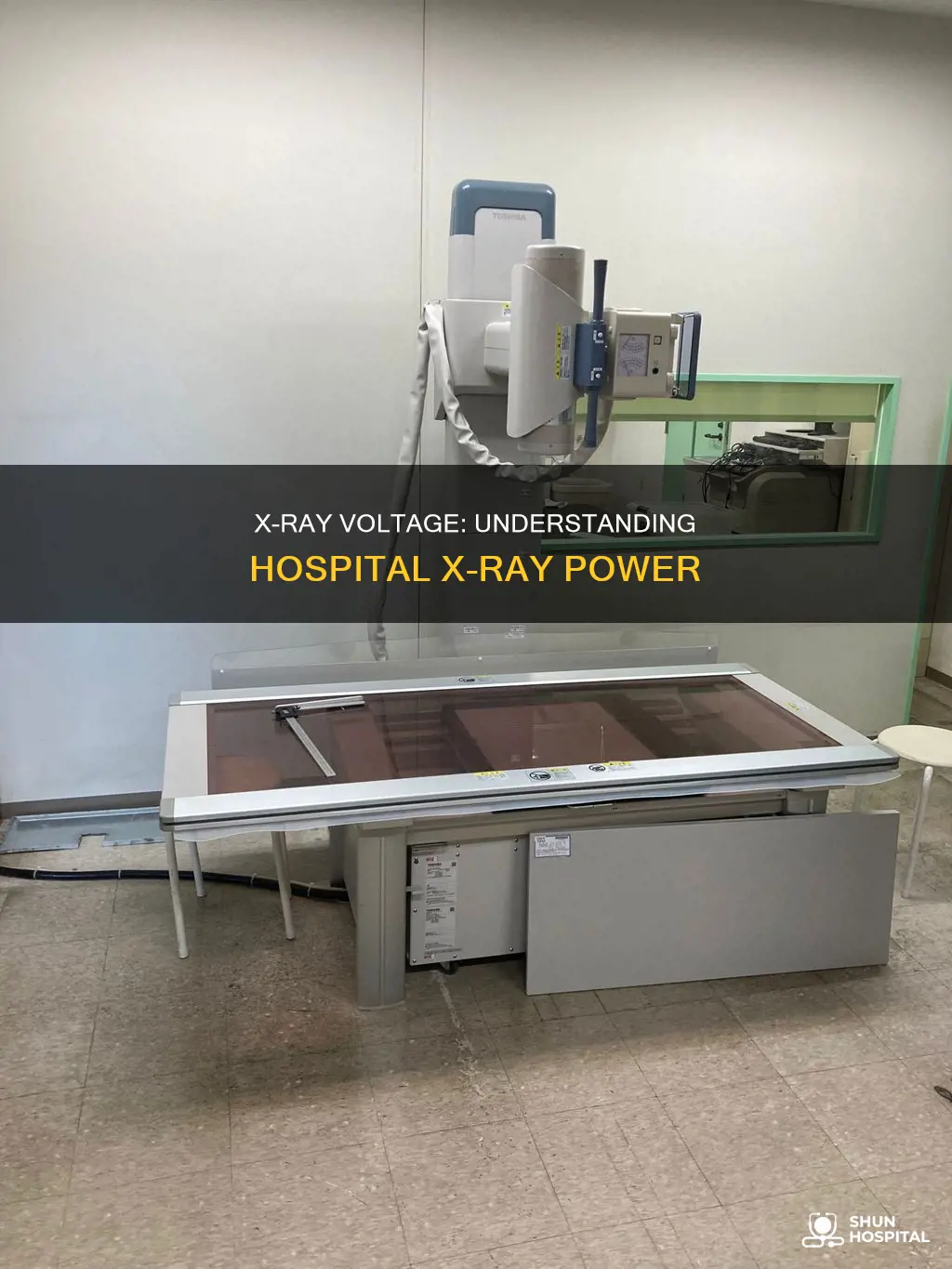

X-Ray Voltage: Understanding Hospital X-Ray Power

X-ray tubes in hospitals are used for imaging and operate at voltages ranging from 50 kV to over 100 kV. The choice of voltage is important as it affects the wavelength and penetration ability of the X-rays produced. For example, an X-ray tube voltage of 100 kV produces X-rays with a wavelength of 0.0124 nm, which can penetrate materials more easily due to their shorter wavelength. Higher voltages also increase the radiation and average photon energy, improving image clarity, especially for larger patients. Therefore, understanding the required voltage and its impact is crucial for effective X-ray imaging in medical applications.

X-ray tube voltage affects image contrast in screen film radiography

X-ray tubes generally operate in the kV range, with a typical excitation voltage of around 50 kV in analytical applications, and 100 kV+ in imaging applications. The voltage used in hospitals usually falls within this range.

X-ray tube voltage, also known as kV, affects image contrast in screen film radiography. In this process, images are obtained using phototiming, where the exposure time is determined automatically. The choice of x-ray tube voltage (kV) affects the image contrast. Increasing the kV reduces the dynamic range but permits the use of narrower display windows.

For example, an image generated at 60 kV required a high radiation intensity of 141 mAs. The S number generated by the system was ~140, which corresponds to an average air kerma incident on the imaging plate of around 7 mGy. The L number generated by this imaging system was 2.3, indicating that the range of intensities incident on the plate differed by a factor of 200 or so.

The image appearance at 75 kV is very similar to that obtained at 60 kV. The increase in x-ray tube voltage increases the amount of radiation coming out of the x-ray tube, as well as the average photon energy (i.e., increased penetration). The tube current exposure time product value (mAs) is reduced to 36 mAs; whereas at 60 kV, the value was much higher (141 mAs).

The image appearance at 120 kV is similar to those at 60 kV and 75 kV. The skin dose is much lower at 1.4 mGy, compared to the 7.6 mGy associated with the radiograph taken at 60 kV.

Higher voltage produces shorter X-ray wavelengths, increasing penetration

X-rays are a form of high-energy electromagnetic radiation with wavelengths shorter than those of ultraviolet rays and longer than gamma rays. They are produced by accelerating electrons through a potential difference (voltage drop) and directing them onto a target material. The accelerating voltage and target material used to produce X-rays vary depending on the application.

X-ray tubes work by accelerating electrons across a gap between a low-voltage potential and a high-voltage potential. The tube power is defined as the product of beam current and excitation voltage. Excitation voltage is the potential difference between the cathode side of the tube and the anode side, determining the highest energy X-ray the tube can produce.

Higher voltage results in shorter X-ray wavelengths and increased penetration. An increase in X-ray tube voltage increases the amount of radiation coming out of the tube and the average photon energy. This is why higher voltage leads to increased penetration.

The penetration depth of X-rays varies across the X-ray spectrum, allowing the photon energy to be adjusted for sufficient transmission through the object while maintaining good contrast in the image. X-rays with high photon energies above 5-10 keV (below 0.2-0.1 nm wavelength) are called hard X-rays and are used to image the inside of objects due to their penetrating ability.

In medical contexts, X-rays are used for radiography to capture images of the internal human body, such as checking for broken bones. The choice of X-ray tube voltage (kV) affects the image contrast in screen film radiography, but this is not the case for digital radiographic systems.

Excitation voltage determines the highest energy X-ray produced

X-ray tubes work by accelerating electrons across a gap between a low-voltage potential and a high-voltage potential. Excitation voltage is the potential difference between the cathode side of the tube and the anode side. This voltage determines the highest energy X-ray (in keV) that the X-ray tube can produce.

The exact spectrum of X-rays generated by the tube is determined by a combination of the characteristic peaks of the target material and the Bremsstrahlung radiation produced by all X-ray tubes. X-ray tubes generally operate in the kV range, with a typical excitation voltage of around 50 kV in analytical applications and 100 kV or more in imaging applications. For example, MXR produces a range of tubes that can operate with excitation voltages of 4 kV to over 100 kV.

The higher the accelerating voltage of the X-ray generator, the shorter the minimum wavelength that can be obtained. The maximum intensity of white radiation occurs at a wavelength that is approximately 1.5 times λ(min). The total intensity of the white radiation is approximately proportional to the filament current, the atomic number of the anode target, and the square of the accelerating voltage.

In an electrical system, power is defined as P=V×I, and X-ray tubes are no different. In the case of X-ray tubes, the tube power is defined as the excitation voltage times the beam current. X-ray tubes are highly inefficient machines, meaning that the majority of the power used is converted to heat, with only a small fraction of the total power being converted to useful X-rays. Therefore, when selecting an X-ray tube power supply, it is important to understand the values of excitation voltage, beam current, and tube power.

X-ray tubes are inefficient, converting most power to heat

X-ray tubes are highly inefficient machines, with the majority of the power input converted to heat rather than X-rays. This is due to the way X-ray tubes work, with power being defined as the product of beam current and excitation voltage. The excitation voltage is the potential difference between the cathode side of the tube and the anode side, which determines the highest energy X-ray the tube can produce. This voltage, along with the beam current, defines the tube power.

X-ray tubes work by accelerating electrons across a gap between a low voltage potential and a high voltage potential. Electrons start at the cathode near GND potential and are accelerated towards a positive high voltage target on the anode. This process results in a significant amount of energy being lost as heat.

The inefficiency of X-ray tubes means that heat management is a crucial consideration in the design of X-ray machines. As the power of the system increases, so does the need for effective heat management. This inefficiency also impacts the selection of an X-ray tube power supply. It is important to understand the interrelationship between excitation voltage, beam current, and tube power when choosing a power supply.

For example, a power supply that provides 50W and 10mA at 5kV would not be suitable for applications requiring 50kV X-rays. A different power supply may provide the required 50kV and 100W, but it may have a lower maximum beam current limitation, impacting the overall performance of the X-ray tube.

In summary, X-ray tubes are inefficient machines that convert most of their input power into heat. This is a result of the way X-ray tubes accelerate electrons across a voltage potential gap. The management of this heat and the selection of appropriate power supplies are important considerations in the design and operation of X-ray machines.

X-ray generators have different power outputs, affecting image clarity

X-ray generators are devices that use a high-voltage power supply to produce X-rays for imaging purposes. The power output of these generators can vary, and this variation affects the clarity of the resulting image.

The basic components of an X-ray generator include an X-ray tube, a high-voltage power supply, and a control unit. The X-ray tube, also known as the envelope, is typically made of glass or metal-ceramic materials. Metal-ceramic tubes are becoming more common due to their ability to withstand the high temperatures generated during X-ray production, which can cause thermal and mechanical shock in glass tubes.

The X-ray tube contains a cathode and an anode. The cathode includes a filament, typically made of tungsten, which emits electrons that are accelerated towards the anode. This acceleration of electrons creates a high-energy beam that penetrates the object being imaged, such as a patient's body. The anode serves as a target for the electrons, and it is usually made of tungsten as well. When the high-energy electrons interact with the anode, they produce X-rays.

The power output of an X-ray generator depends on the excitation voltage and the beam current. A higher excitation voltage results in an increase in the number of X-rays produced, as well as their penetration ability. However, simply increasing the voltage is not sufficient to improve image clarity. The beam current, which is controlled by the filament current, also plays a crucial role. The filament current determines the intensity of the X-ray beam, and adjustments to this current can vary the number of electrons emitted, thereby affecting the overall power output of the generator.

The interplay between voltage and current is essential for optimizing image clarity. For example, a higher voltage can increase penetration, resulting in lower contrast and a lower dose. Conversely, a lower voltage produces higher contrast but requires a higher dose due to the need for more photons to penetrate body tissues. Additionally, the tube current, measured in milliamperes (mA), determines the total number of photons reaching the patient to form the image. Therefore, the combination of voltage and current settings must be carefully chosen to achieve the desired image quality while minimizing the patient's radiation exposure.
