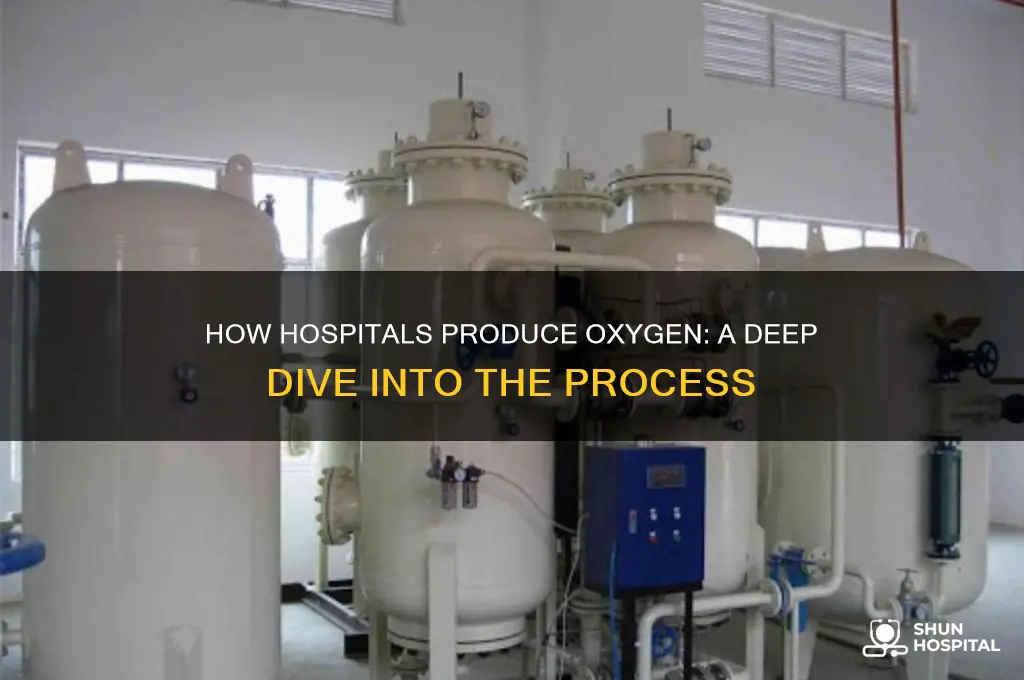

Hospital oxygen is typically produced through a process called Pressure Swing Adsorption (PSA), which is a cost-effective and efficient method for generating high-purity oxygen on-site. In this system, compressed air is passed through a molecular sieve that selectively adsorbs nitrogen, allowing oxygen to pass through and be collected. The process involves two adsorption towers filled with zeolite material, which alternately adsorb nitrogen under high pressure and release it under low pressure, ensuring a continuous supply of oxygen. This on-site generation method eliminates the need for storing large quantities of oxygen cylinders, reducing logistical challenges and ensuring a reliable oxygen supply for medical use. Additionally, some hospitals may also receive oxygen from liquid oxygen storage tanks or through pipeline systems connected to centralized oxygen plants, depending on their infrastructure and needs.
Explore related products
What You'll Learn
- Cryogenic Distillation Process: Air liquefaction, fractional distillation, nitrogen separation, oxygen extraction, purification steps
- Pressure Swing Adsorption (PSA): Zeolite adsorption, nitrogen removal, oxygen concentration, filtration, storage
- Oxygen Generators: On-site production, air compression, molecular sieve, purity control, distribution
- Liquid Oxygen Storage: Insulated tanks, vaporization, pressure regulation, safety protocols, supply management
- Pipeline Distribution: Centralized systems, flow meters, pressure monitoring, patient outlets, maintenance checks
Cryogenic Distillation Process: Air liquefaction, fractional distillation, nitrogen separation, oxygen extraction, purification steps
The cryogenic distillation process begins with air liquefaction, a critical step that transforms atmospheric air into a liquid state. This is achieved by compressing air to high pressures, typically around 200 psi, and then cooling it to cryogenic temperatures below -180°C (-292°F). At this point, air becomes a liquid mixture of its primary components: nitrogen (78%), oxygen (21%), and trace gases like argon (1%). The liquefaction process is energy-intensive but essential for separating gases based on their boiling points. For hospitals, this step ensures a concentrated source of oxygen, which is later purified for medical use.
Fractional distillation follows liquefaction, a technique that exploits the differing boiling points of nitrogen and oxygen. Liquid air is fed into a distillation column, where it is slowly heated. Nitrogen, with a boiling point of -196°C (-320°F), vaporizes first and is drawn off as a gas. Oxygen, boiling at -183°C (-297°F), remains in liquid form and is collected at the bottom of the column. This separation is precise, yielding oxygen with a purity of up to 99.5%. However, for medical oxygen, further purification is required to meet stringent standards, such as those set by the United States Pharmacopeia (USP), which mandates a minimum purity of 99.5% and limits on contaminants like carbon dioxide and water vapor.
Nitrogen separation is a key phase in the cryogenic process, ensuring that oxygen is isolated effectively. As nitrogen constitutes the majority of air, its efficient removal is crucial. The distillation column’s design, with trays or packing material, facilitates this separation by providing surfaces for vapor-liquid contact. Once separated, nitrogen is often vented into the atmosphere or captured for industrial use, such as in food preservation or electronics manufacturing. This step highlights the process’s dual purpose: producing high-purity oxygen for hospitals while also generating valuable byproducts.
Oxygen extraction and purification are the final stages, tailored to meet medical-grade requirements. After fractional distillation, the liquid oxygen undergoes additional filtration to remove trace impurities. This includes passing it through molecular sieves, which adsorb moisture and carbon dioxide, and through activated alumina beds to eliminate hydrocarbons. The purified oxygen is then vaporized and compressed into cylinders or stored in liquid form in cryogenic tanks. Hospitals typically receive oxygen in cylinders at pressures of 2,200 psi, providing a readily available supply for patient care. For long-term storage, liquid oxygen tanks are preferred, as they hold larger volumes and reduce the need for frequent deliveries.
Practical considerations for hospitals include ensuring a reliable supply chain and maintaining equipment integrity. Cryogenic storage tanks must be insulated to prevent rapid vaporization, and pressure regulators on cylinders should be inspected regularly to avoid leaks. Additionally, hospitals often have backup systems, such as on-site oxygen generators or reserve cylinders, to mitigate supply disruptions. Understanding the cryogenic distillation process empowers healthcare facilities to manage their oxygen resources effectively, ensuring that patients receive the life-sustaining gas they need without interruption.
Boris Johnson Hospitalized: Which London Facility Admitted the Former PM?
You may want to see also
Explore related products
Pressure Swing Adsorption (PSA): Zeolite adsorption, nitrogen removal, oxygen concentration, filtration, storage
Hospitals rely on a consistent supply of high-purity oxygen, and Pressure Swing Adsorption (PSA) technology is a cornerstone of this process. At its core, PSA leverages the selective adsorption properties of zeolites, a type of porous material, to separate oxygen from air. Here’s how it works: compressed air is forced through a zeolite-filled column, where nitrogen molecules are preferentially adsorbed due to their stronger affinity for the zeolite surface. Oxygen, being less attracted, passes through and is collected as a concentrated product. This method is highly efficient, achieving oxygen concentrations of up to 95%, suitable for medical use.
The process doesn’t stop at adsorption. Once the zeolite bed becomes saturated with nitrogen, the system switches to a "regeneration" phase, reducing pressure to release the trapped nitrogen back into the atmosphere. This "swing" between high and low pressure allows the zeolite to be reused continuously, making PSA a cost-effective and sustainable solution. For hospitals, this means a reliable oxygen supply without the need for cryogenic distillation or bulky oxygen tanks, which are both expensive and logistically challenging.
Filtration and storage are critical downstream steps in ensuring the oxygen meets medical-grade standards. After concentration, the oxygen passes through fine filters to remove any particulate matter or impurities. It is then stored in high-pressure cylinders or piped directly to hospital wards. Storage systems are designed to maintain oxygen purity and pressure, with safety valves and monitors to prevent over-pressurization. For example, oxygen cylinders typically store gas at 2,200 psi, providing a readily available supply for patient use.
One practical consideration for hospitals implementing PSA systems is the need for regular maintenance to ensure optimal performance. Zeolite beds must be inspected for degradation, and filters replaced periodically to avoid contamination. Additionally, the system’s compressors and valves require routine checks to prevent leaks or malfunctions. Hospitals should also invest in backup oxygen supplies, such as liquid oxygen reserves, to mitigate risks during power outages or system failures.
In comparison to other oxygen generation methods, PSA stands out for its simplicity and scalability. Unlike cryogenic distillation, which requires extreme temperatures and large infrastructure, PSA systems are compact and can be installed on-site, reducing transportation costs and supply chain vulnerabilities. For hospitals in remote or resource-limited areas, this decentralized approach is a game-changer, ensuring a steady oxygen supply even in challenging environments. By understanding and optimizing PSA technology, healthcare facilities can enhance their resilience and better serve patients in need.
Susan Lucci's Heart Surgery: The Hospital Behind Her Recovery
You may want to see also
Explore related products
Oxygen Generators: On-site production, air compression, molecular sieve, purity control, distribution
Hospitals increasingly rely on oxygen generators for on-site production, a shift driven by the need for cost-efficiency, reliability, and reduced dependency on external suppliers. These systems extract oxygen directly from ambient air, ensuring a steady supply even during supply chain disruptions. The process begins with air compression, where ambient air is drawn into the system and pressurized to concentrations suitable for separation. This compressed air is then filtered to remove impurities like dust, moisture, and oil, ensuring the subsequent steps are not compromised.
At the heart of oxygen generation lies the molecular sieve, a critical component that separates oxygen from other gases. This sieve, typically made of zeolite, selectively adsorbs nitrogen from the compressed air, allowing oxygen to pass through. The process operates on the principle of Pressure Swing Adsorption (PSA), where the sieve alternates between adsorption and desorption cycles. During adsorption, nitrogen is trapped, and oxygen is released; during desorption, the sieve is regenerated by reducing pressure, releasing the trapped nitrogen back into the atmosphere. This cycle ensures a continuous flow of high-purity oxygen, typically achieving concentrations of 90–95%, sufficient for most medical applications.
Purity control is paramount in medical oxygen production, as even slight deviations can pose risks to patients. Oxygen generators incorporate sensors and analyzers to monitor oxygen concentration in real-time, ensuring it meets the required standards (minimum 90% purity for medical use). If purity falls below the threshold, the system automatically adjusts the PSA cycle or diverts the output until the issue is resolved. Hospitals often integrate backup systems, such as liquid oxygen tanks or pipeline connections, to ensure uninterrupted supply during maintenance or system failures.
Distribution of on-site generated oxygen involves a network of pipelines that deliver the gas directly to patient wards, operating rooms, and intensive care units. These pipelines are designed to maintain pressure and purity, with regulators and flow meters installed at each outlet to control dosage. For example, adult patients typically require 1–15 liters per minute (L/min) of oxygen, while neonates may need as little as 0.5–2 L/min, depending on their condition. Proper training for healthcare staff is essential to ensure accurate administration and prevent wastage.
Adopting on-site oxygen generators offers hospitals a sustainable solution, reducing logistical challenges and environmental impact associated with cylinder deliveries. However, initial setup costs and technical expertise for maintenance can be barriers. Hospitals must conduct thorough feasibility studies, considering factors like energy consumption, space requirements, and local air quality. With proper planning, on-site oxygen generation can transform healthcare delivery, ensuring a reliable, cost-effective, and life-saving resource for patients in need.
Does Nix Alamo Heights Hospital Offer Emergency Room Services?
You may want to see also
Explore related products
Liquid Oxygen Storage: Insulated tanks, vaporization, pressure regulation, safety protocols, supply management
Liquid oxygen storage is a critical component in ensuring a reliable oxygen supply for hospitals, where even minor disruptions can have life-threatening consequences. At the heart of this system are insulated tanks, typically constructed from materials like stainless steel or aluminum, designed to maintain temperatures below -183°C (-297°F) to keep oxygen in its liquid state. These tanks are double-walled, with the space between walls filled with vacuum or insulating materials like perlite, to minimize heat transfer and prevent boil-off. A well-designed tank can store up to 10,000 gallons of liquid oxygen, providing hospitals with a buffer of several days’ supply, depending on consumption rates.
Vaporization is the next critical step, converting liquid oxygen into a gaseous form suitable for medical use. This process occurs in a vaporizer, which uses ambient air or warm water to heat the liquid oxygen. The vaporization rate must be carefully controlled to match hospital demand, typically ranging from 50 to 500 liters per minute. Excessive vaporization can lead to pressure spikes, while insufficient vaporization can cause supply shortages. Modern systems often include automatic controls to adjust vaporization rates based on real-time consumption data, ensuring a steady flow of oxygen to patient care areas.
Pressure regulation is equally vital, as medical oxygen must be delivered at precise pressures—usually between 50 and 100 psi—to function safely with hospital equipment. Pressure regulators, installed at the outlet of the vaporizer, reduce the high-pressure gas from the storage tank to the required levels. These regulators must be regularly inspected for wear or malfunction, as failures can lead to over-pressurization, which risks equipment damage or under-pressurization, compromising patient care. Hospitals often employ redundant regulators to ensure uninterrupted supply during maintenance or emergencies.
Safety protocols in liquid oxygen storage are non-negotiable, given the hazards of handling a cryogenic, highly reactive substance. Storage areas must be well-ventilated to prevent oxygen accumulation, which can increase fire risks. All personnel must be trained in handling procedures, including the use of personal protective equipment (PPE) like insulated gloves and face shields. Emergency shutdown systems, such as automatic valves that isolate the supply in case of leaks, are mandatory. Regular safety audits and drills ensure that staff can respond swiftly to incidents, minimizing risks to patients and infrastructure.
Effective supply management ties all these elements together, balancing storage capacity, consumption rates, and delivery schedules to prevent shortages. Hospitals typically monitor oxygen levels in real-time using digital gauges and alarms, with thresholds set to trigger reorders when tanks reach 20-30% capacity. Contracts with suppliers often include emergency delivery clauses, ensuring rapid replenishment during unexpected spikes in demand. By integrating insulated tanks, vaporization, pressure regulation, safety protocols, and supply management, hospitals can maintain a robust oxygen supply chain, critical for saving lives.
Finding the Fax Machine in Theme Hospital: A Nostalgic Guide
You may want to see also
Explore related products
Pipeline Distribution: Centralized systems, flow meters, pressure monitoring, patient outlets, maintenance checks
Hospitals rely on centralized oxygen systems to deliver life-sustaining gas to patients efficiently and safely. These systems act as the backbone of oxygen distribution, ensuring a continuous supply to various wards and treatment areas. At the heart of this network lies a high-pressure oxygen source, typically stored in large tanks or generated on-site through processes like pressure swing adsorption (PSA) or cryogenic distillation. From this central point, oxygen is distributed through an intricate pipeline network, designed to maintain optimal pressure and flow rates for diverse medical needs.
Flow meters are critical components in this distribution system, allowing healthcare professionals to precisely control the amount of oxygen delivered to each patient. These devices, often located at the patient's bedside, measure and regulate the flow rate in liters per minute (L/min), ensuring it aligns with the prescribed dosage. For instance, a patient with mild respiratory distress might receive 2-4 L/min, while those with severe conditions could require up to 10-15 L/min. Accurate flow measurement is essential to prevent complications like oxygen toxicity or hypoxia, making regular calibration and maintenance of these meters a priority.
Pressure monitoring is another vital aspect of pipeline distribution, ensuring the system operates within safe limits. Hospitals typically maintain pipeline pressures between 4-6 bar (58-87 psi) to facilitate smooth oxygen flow while minimizing the risk of leaks or ruptures. Pressure gauges and alarms are strategically placed throughout the network to detect anomalies, such as sudden drops that could indicate a leak or blockages that hinder oxygen delivery. Immediate action is required when these alarms trigger, often involving shutting down affected sections for inspection and repair.
Patient outlets, the endpoints of the distribution system, are designed for easy access and safety. These outlets, equipped with quick-connect fittings, allow medical staff to attach oxygen delivery devices like nasal cannulas, masks, or ventilators swiftly. Each outlet is typically labeled with its location and flow capacity, ensuring proper usage. Regular checks are conducted to verify that outlets are free from debris, fully functional, and compliant with safety standards. For instance, outlets in pediatric wards may have lower flow capacities (e.g., 0.5-2 L/min) tailored to the needs of younger patients.
Maintenance checks are the cornerstone of a reliable pipeline distribution system. Routine inspections include assessing pipeline integrity for corrosion or wear, testing valves and regulators for smooth operation, and verifying the functionality of alarms and gauges. Annual or biannual comprehensive audits, often conducted by specialized technicians, ensure compliance with regulatory standards like NFPA 99. Proactive maintenance not only prevents system failures but also extends the lifespan of the infrastructure, ultimately safeguarding patient care. For example, replacing aging pipelines or upgrading flow meters to more accurate models can significantly enhance system performance and safety.
Psychiatric Hospitals: Why the High Staff Turnover?
You may want to see also
Frequently asked questions
Hospital oxygen is primarily produced through the process of Pressure Swing Adsorption (PSA), which separates oxygen from air by filtering out nitrogen and other gases using zeolite molecular sieves.
Hospital oxygen typically comes from on-site oxygen generation plants, liquid oxygen storage tanks, or compressed oxygen cylinders delivered by suppliers.
Yes, hospital oxygen is the same as the oxygen in the air but is concentrated to a higher purity level, usually 90-95%, for medical use.
Oxygen is stored as a liquid in cryogenic tanks or as a gas in high-pressure cylinders. It is distributed through a pipeline system to various wards and patient rooms for immediate use.
