Oxygen storage in hospitals is a critical component of healthcare infrastructure, ensuring a reliable supply for patients in need of respiratory support. Hospitals typically store oxygen in two primary forms: as compressed gas in high-pressure cylinders or as liquid oxygen in cryogenic tanks. Compressed gas cylinders are widely used due to their portability and ease of distribution, while liquid oxygen tanks are favored for their high storage capacity and cost-effectiveness in large facilities. Both systems require stringent safety measures, including proper ventilation, secure storage areas, and regular monitoring to prevent leaks or accidents. Additionally, hospitals often maintain backup systems, such as on-site oxygen generators or reserve cylinders, to ensure uninterrupted supply during emergencies or supply chain disruptions. Effective oxygen storage management is essential to meet the demands of critical care units, operating rooms, and patients with respiratory conditions, particularly during public health crises like pandemics.
| Characteristics | Values |
|---|---|
| Storage Method | Compressed gas in cylinders, liquid oxygen in cryogenic tanks, on-site oxygen generators, or pipeline systems. |
| Cylinder Pressure | Typically 2,200 psi (pounds per square inch) for compressed gas cylinders. |
| Cylinder Sizes | Common sizes include E (680 liters), D (425 liters), and H (1,760 liters). |
| Liquid Oxygen Storage | Stored at -183°C (-297°F) in vacuum-insulated cryogenic tanks. |
| Oxygen Purity | Medical-grade oxygen: ≥99.5% purity. |
| Storage Location | Secure, well-ventilated areas away from heat sources, flammable materials, and direct sunlight. |
| Safety Regulations | Compliant with NFPA (National Fire Protection Association) and OSHA (Occupational Safety and Health Administration) standards. |
| Monitoring Systems | Equipped with pressure gauges, flow meters, and low-level alarms for continuous monitoring. |
| Distribution System | Centralized pipeline systems or portable cylinders with regulators for patient delivery. |
| Backup Supply | Hospitals maintain backup oxygen supplies (e.g., additional cylinders or liquid tanks) for emergencies. |
| Maintenance | Regular inspection of cylinders, valves, and storage systems to ensure safety and functionality. |
| Environmental Considerations | Cryogenic tanks require proper insulation to prevent rapid evaporation (boil-off). |
| Transportation | Cylinders and liquid tanks are transported in compliance with DOT (Department of Transportation) regulations. |
| Cost | Varies based on storage method; liquid oxygen and on-site generators are often more cost-effective long-term. |
| Sustainability | On-site oxygen generators reduce reliance on external suppliers and minimize transportation emissions. |
Explore related products
What You'll Learn
- Cylinder Storage Safety: Guidelines for secure oxygen cylinder placement, handling, and fire prevention in hospital settings
- Liquid Oxygen Systems: Use of insulated tanks for bulk storage and controlled vaporization in medical facilities
- Pipeline Distribution: Centralized oxygen supply networks ensuring consistent delivery to patient care areas
- Portable Oxygen Devices: Storage and maintenance of portable concentrators and tanks for patient mobility
- Emergency Backup Systems: Reliable backup oxygen sources to ensure uninterrupted supply during power outages
Cylinder Storage Safety: Guidelines for secure oxygen cylinder placement, handling, and fire prevention in hospital settings
Oxygen cylinders are lifelines in hospitals, but their improper storage and handling can turn them into hazards. Secure placement, careful handling, and fire prevention are critical to ensuring safety for patients, staff, and facilities. Here’s how to manage oxygen cylinder storage effectively in a hospital setting.
Placement Matters: Strategic Location and Secure Mounting
Oxygen cylinders should be stored in well-ventilated, dry areas away from direct sunlight, heat sources, and flammable materials. NFPA guidelines recommend maintaining a minimum distance of 20 feet from combustible materials or using a noncombustible barrier at least 5 feet high. Cylinders must be secured upright in a designated rack or chained to a wall to prevent tipping. For example, a hospital in Singapore implemented color-coded zones for cylinder storage, with red zones strictly prohibiting flammable items within a 10-meter radius. This visual system reduces human error and enhances compliance.
Handling with Care: Protocols for Movement and Connection
Handling oxygen cylinders requires precision to avoid leaks or damage. Always use a cylinder cart to move them, never roll or drag them. When connecting or disconnecting, ensure the regulator is fully closed to prevent rapid gas release. Staff should be trained to inspect cylinders for damage, such as dents or corroded valves, before use. A hospital in the UK introduced a "buddy system" where two staff members verify cylinder connections, reducing incidents by 40% within six months.
Fire Prevention: Mitigating Risks Through Vigilance
Oxygen enriches fires, making fire prevention paramount. Cylinders must never be stored near oil-based substances, electrical equipment, or open flames. Smoking should be strictly prohibited within 50 feet of storage areas. Install fire extinguishers nearby, but ensure they are suitable for Class B and C fires. Regular fire drills and staff training on oxygen-related fire hazards are essential. For instance, a hospital in Australia adopted a "fire-safe checklist" for oxygen storage areas, which includes daily inspections of fire barriers and ventilation systems.
Emergency Preparedness: Quick Response to Leaks or Fires
In the event of a leak, immediately ventilate the area, remove the cylinder if safe, and notify the fire department. Staff should be trained to use personal protective equipment (PPE) when handling leaking cylinders. Hospitals should have a designated spill kit containing oxygen indicators and absorbent materials. A case study from a U.S. hospital highlights the importance of quick action: during a cylinder leak, staff evacuated the area within 3 minutes, preventing a potential fire.
By adhering to these guidelines, hospitals can ensure oxygen cylinders remain a safe and reliable resource. Strategic placement, careful handling, and proactive fire prevention are not just regulatory requirements—they are lifesaving practices.
Rural Hospital Survival: Key Demographics for Long-Term Sustainability
You may want to see also
Explore related products

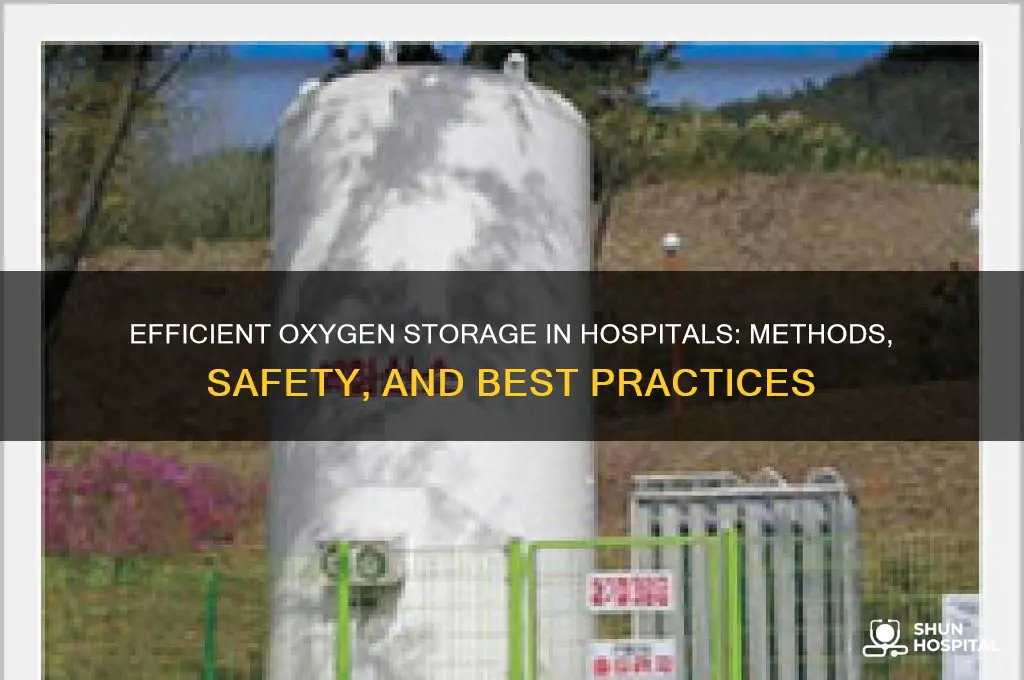

Liquid Oxygen Systems: Use of insulated tanks for bulk storage and controlled vaporization in medical facilities
Hospitals rely on a steady, reliable supply of medical oxygen, often demanding thousands of liters daily for patient care. Liquid oxygen systems, utilizing insulated storage tanks and controlled vaporization, offer a compact, efficient solution to meet this critical need.
Unlike gaseous oxygen stored under high pressure, liquid oxygen is stored at extremely low temperatures (-183°C) in vacuum-insulated tanks. This cryogenic storage method allows for a significantly higher volume of oxygen to be stored in a smaller footprint compared to traditional gas cylinders. A single tank can hold the equivalent of hundreds of gas cylinders, reducing the need for frequent deliveries and minimizing storage space requirements, crucial in space-constrained medical facilities.
Vaporization, the process of converting liquid oxygen back into its gaseous state, is carefully controlled to ensure a consistent supply. Heaters or ambient air are used to gently warm the liquid, releasing oxygen gas at a regulated pressure suitable for medical use. This controlled process guarantees a steady flow, essential for ventilators, anesthesia machines, and other life-supporting equipment.
The advantages of liquid oxygen systems extend beyond space efficiency. They offer a more cost-effective solution in the long term, as bulk delivery of liquid oxygen is generally cheaper than frequent cylinder deliveries. Additionally, the automated vaporization process reduces the risk of human error associated with manual cylinder changes, enhancing safety and reliability.
However, implementing liquid oxygen systems requires careful planning. Hospitals must invest in specialized cryogenic storage tanks, vaporizers, and associated piping infrastructure. Regular maintenance and safety protocols are crucial due to the extreme temperatures involved. Personnel handling the system need specialized training to ensure safe operation and emergency response procedures.
Despite the initial investment, liquid oxygen systems provide a robust and reliable solution for hospitals with high oxygen demands. Their compact design, cost-effectiveness, and automated delivery make them a preferred choice for ensuring a continuous supply of this life-sustaining gas in critical care settings.
Are Hospitals Harming Patients? Uncovering Medical Errors and Solutions
You may want to see also
Explore related products
Pipeline Distribution: Centralized oxygen supply networks ensuring consistent delivery to patient care areas
Hospitals rely on centralized oxygen supply networks, often called pipeline distribution systems, to ensure a consistent and reliable flow of medical-grade oxygen to patient care areas. These systems are the backbone of respiratory support, delivering oxygen to intensive care units, operating rooms, and recovery wards where even a brief interruption can be critical. Unlike portable oxygen cylinders, which are finite and require manual replacement, pipeline systems draw oxygen from a central source, typically a large storage tank or an on-site oxygen generator, and distribute it through a network of pipes and outlets. This infrastructure is designed to meet the high-flow demands of multiple patients simultaneously, with flow rates ranging from 1 to 15 liters per minute per patient, depending on clinical needs.
The design of a pipeline distribution system is both an art and a science. Engineers must account for factors like pressure drops, flow resistance, and the layout of the hospital to ensure oxygen reaches every outlet at the required pressure (typically 4-6 bar) and purity (minimum 99.5%). The system includes safety features such as pressure regulators, alarms, and backup supplies to prevent shortages during emergencies. For instance, hospitals often install vacuum-insulated evaporators to store liquid oxygen, which vaporizes into a gas and is then distributed through the pipeline network. This method ensures a steady supply, even during peak demand, and reduces the need for frequent refills compared to traditional gas cylinders.
One of the key advantages of pipeline distribution is its scalability. Hospitals can expand the network as patient care areas grow or as new wards are added, ensuring that oxygen is always available where it’s needed. However, this scalability requires meticulous planning. For example, outlets must be strategically placed to accommodate both current and future needs, with a recommended spacing of 5 to 10 meters between outlets in high-demand areas like ICUs. Additionally, the system must comply with stringent regulations, such as NFPA 99 in the United States, which mandates regular inspections and maintenance to prevent leaks, contamination, or system failures.
Despite their reliability, pipeline systems are not without challenges. Initial installation costs can be high, often ranging from $500,000 to $2 million depending on the hospital’s size and complexity. Maintenance is also critical; even a small leak can compromise the system’s efficiency and safety. Hospitals must invest in trained personnel to monitor pressure gauges, check for corrosion, and conduct routine tests to ensure the system operates within safe parameters. For instance, bi-annual checks for leaks using soapy water or electronic detectors are standard practice to identify and repair issues before they escalate.
In conclusion, pipeline distribution systems are indispensable in modern healthcare, offering a seamless and efficient solution for oxygen delivery. While they require significant upfront investment and ongoing maintenance, their ability to provide uninterrupted oxygen supply makes them a cornerstone of patient care. Hospitals adopting these systems not only enhance their capacity to treat respiratory conditions but also future-proof their infrastructure against growing demands. By prioritizing safety, scalability, and compliance, pipeline networks ensure that oxygen—a lifeline for countless patients—is always within reach.
Eastern State Hospitals: How Many Are There?
You may want to see also
Explore related products
Portable Oxygen Devices: Storage and maintenance of portable concentrators and tanks for patient mobility
Portable oxygen devices have revolutionized patient care by enabling mobility and independence for those with respiratory conditions. Unlike stationary systems, portable concentrators and tanks require careful storage and maintenance to ensure safety, reliability, and compliance with medical standards. These devices, often used by patients with COPD, asthma, or post-surgical needs, must be handled with precision to avoid contamination, damage, or malfunction. Proper storage involves protecting the devices from extreme temperatures, moisture, and physical impact, while maintenance includes regular cleaning, battery checks, and filter replacements.
Storage Solutions for Portable Oxygen Devices
Portable oxygen concentrators and tanks should be stored in a cool, dry area, away from direct sunlight, heat sources, or flammable materials. For concentrators, ensure the storage space has adequate ventilation to prevent overheating. Tanks, particularly those containing compressed oxygen, must be secured upright in a well-ventilated area, with caps securely in place to avoid leaks. Hospitals and patients alike should invest in storage cases or racks designed specifically for these devices, which often include padding to prevent damage during transport. For example, a portable concentrator like the Inogen One G5 should be stored in its protective case when not in use, while E tanks (holding 680 liters of oxygen) require wall-mounted brackets or carts to prevent tipping.
Maintenance Protocols to Ensure Device Longevity
Regular maintenance is critical to the performance and safety of portable oxygen devices. Concentrators require weekly cleaning of external vents and filters to prevent dust buildup, which can reduce airflow efficiency. Replace internal filters every 1–2 months, depending on usage. For tanks, inspect valves and regulators for cracks or leaks before each use, and ensure the pressure gauge reads within the safe range (typically 2000–2200 psi for fully charged tanks). Batteries in concentrators should be charged fully before storage and tested monthly to maintain capacity. Patients should follow manufacturer guidelines, such as avoiding submerging concentrators in water or using abrasive cleaners, to prevent damage.
Practical Tips for Patient Mobility and Safety
When using portable oxygen devices outside the hospital, patients must prioritize safety and convenience. Always carry a backup power source or spare tank, especially for trips longer than 4 hours, as concentrators typically provide 4–6 hours of continuous flow on a single charge. For tanks, ensure the flow rate is set correctly—typically 1–6 liters per minute for adults, adjusted by a healthcare provider. Patients should avoid smoking or open flames within 10 feet of oxygen devices, as oxygen supports combustion. Additionally, label devices with emergency contact information and usage instructions, particularly for elderly patients or those with cognitive impairments.
Comparing Concentrators and Tanks: Which is Right for You?
The choice between portable concentrators and tanks depends on patient needs, lifestyle, and oxygen requirements. Concentrators, like the Philips SimplyGo Mini, are lightweight (under 5 lbs) and ideal for active patients needing continuous or pulse-dose oxygen. They require electricity or battery power but eliminate the need for refills. Tanks, such as D or E sizes, offer higher oxygen capacity but are heavier and require regular refilling. For patients with higher flow rate needs (e.g., 4–6 L/min), tanks may be more suitable, while concentrators are better for lower flow rates (1–3 L/min). Hospitals should educate patients on the pros and cons of each, ensuring the chosen device aligns with their daily activities and oxygen prescription.
Proper storage and maintenance of portable oxygen devices are not just logistical tasks—they are critical to patient safety and device functionality. By following these guidelines, healthcare providers and patients can ensure uninterrupted oxygen therapy, enhanced mobility, and peace of mind.
The Legacy of Saint Vincent: Why So Many Hospitals Bear His Name
You may want to see also
Explore related products
Emergency Backup Systems: Reliable backup oxygen sources to ensure uninterrupted supply during power outages
Hospitals rely on a continuous oxygen supply to treat patients with respiratory conditions, surgical needs, and critical illnesses. Power outages, however, pose a significant threat to this lifeline. Emergency backup systems are therefore essential to ensure uninterrupted oxygen delivery during such crises. These systems must be reliable, scalable, and easy to activate, providing sufficient oxygen until primary power is restored.
One effective solution is the use of high-pressure oxygen cylinders stored in designated areas throughout the hospital. These cylinders, typically filled to 2,200 psi, can provide oxygen for hours or even days, depending on patient demand. For example, a 200-cubic-foot cylinder can supply a patient requiring 2 liters per minute for approximately 200 hours. Hospitals should maintain a stockpile of various cylinder sizes, such as E, H, and T types, to cater to different needs. Regular inspections and pressure checks are critical to ensure cylinders remain functional and safe.
Another reliable option is liquid oxygen storage tanks, which store oxygen in a cryogenic state at -183°C. These tanks can hold large volumes of oxygen, making them ideal for high-demand facilities. For instance, a 1,000-gallon tank can supply up to 50 patients receiving 10 liters per minute for over 24 hours. However, liquid oxygen systems require careful monitoring to prevent evaporation and ensure proper insulation. Hospitals must also have backup power for the pumps and vaporizers needed to convert liquid oxygen into a usable gas form.
Portable oxygen concentrators offer a third backup option, particularly for smaller facilities or decentralized care units. These devices extract oxygen from ambient air using molecular sieve technology and can run on battery power for 4–8 hours, depending on the model. While their flow rates (typically 1–5 liters per minute) are lower than bulk systems, they are lightweight, easy to deploy, and require minimal maintenance. Hospitals should strategically place these units in critical areas like ICUs and emergency departments.
To ensure seamless operation during power outages, hospitals must implement comprehensive contingency plans. This includes regular drills to train staff on activating backup systems, clear labeling of oxygen sources, and redundant power supplies for critical equipment. Additionally, hospitals should invest in uninterruptible power supply (UPS) systems to bridge the gap between a power outage and backup generator activation, ensuring oxygen delivery systems remain operational without interruption.
In conclusion, emergency backup oxygen systems are a non-negotiable component of hospital infrastructure. By combining high-pressure cylinders, liquid oxygen tanks, and portable concentrators, facilities can create a robust, multi-layered approach to oxygen security. Proactive planning, regular maintenance, and staff training are essential to guarantee these systems function flawlessly when needed most.
Understanding Hospital Consultants: Roles, Responsibilities, and Patient Care Impact
You may want to see also
Frequently asked questions
Oxygen is typically stored in hospitals in two main forms: as compressed gas in high-pressure cylinders or as liquid oxygen in cryogenic storage tanks.
Oxygen cylinders must be stored upright in well-ventilated areas, secured to prevent falling, and kept away from heat sources, open flames, and flammable materials. They should also be labeled clearly and handled with care to avoid damage.
Liquid oxygen is stored in specially designed cryogenic tanks that maintain extremely low temperatures (around -183°C or -297°F) to keep the oxygen in liquid form. These tanks are insulated and vented to prevent pressure buildup.
Compressed oxygen is stored as a gas under high pressure in cylinders, while liquid oxygen is stored in a cryogenic state in insulated tanks. Liquid oxygen storage is more space-efficient and suitable for high-demand settings, whereas compressed gas cylinders are portable and easier to distribute.
Hospitals use pressure gauges for compressed gas cylinders and level indicators for liquid oxygen tanks to monitor storage levels. Automated systems and alarms are often in place to alert staff when levels are low, ensuring a continuous supply.
