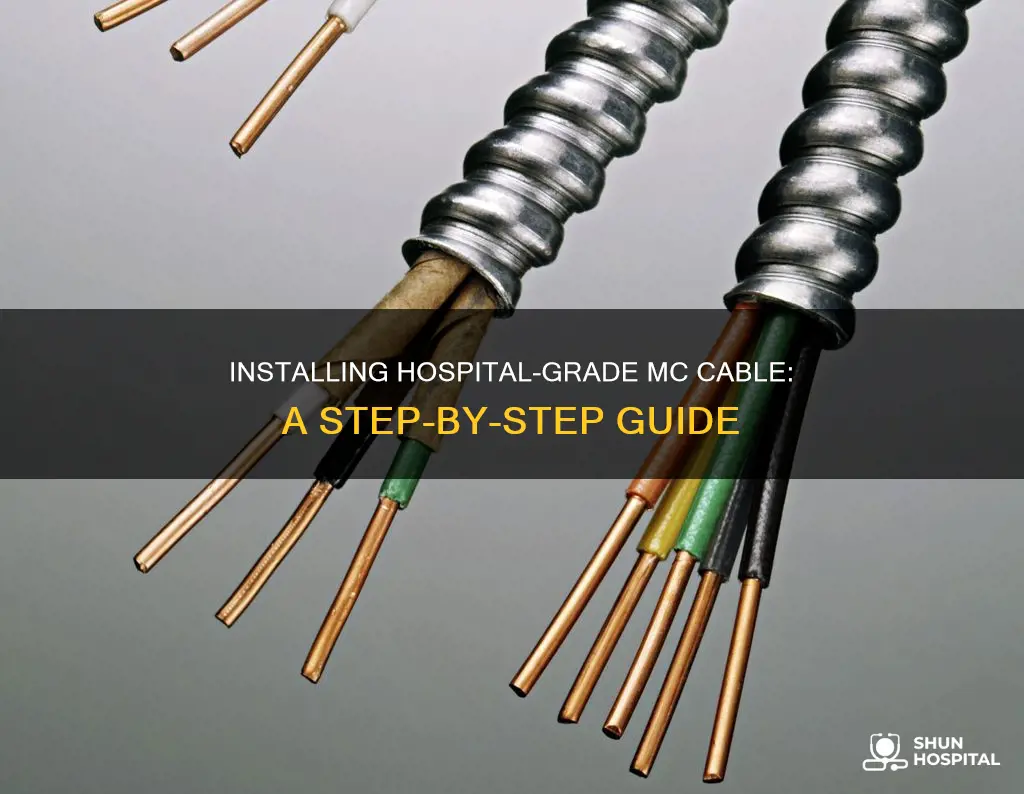

Hospital-grade MC cable is used for branch-circuit wiring in patient care areas of hospitals, medical centers, and other healthcare facilities. It is designed to meet stringent healthcare requirements, providing reliable power distribution and enhanced safety features. This cable type is approved for use in medical facilities and offers a dual grounding system for superior safety in patient care areas. When installing hospital-grade MC cable, it is important to follow the manufacturer's instructions and ensure compliance with relevant codes and standards, such as the National Electrical Code (NEC). Proper termination practices, such as cutting the cable flush or wrapping it around the cable armor, are also essential to ensure safe and effective installation.
| Characteristics | Values |
|---|---|
| Installation instructions | Refer to the manufacturer's website for installation instructions |
| Termination | Cut flush, bend back half an inch, or wrap around the cable armour a few times before inserting into the connector |
| Connectors | Listed MCIA connectors |
| Grounding | Dual grounding system with a green insulated copper ground wire and a bare aluminium grounding and bonding conductor |
| Compliance | National Electrical Code (NEC) Article 330, UL 1569, UL 83, ASTM B3, B8, B787, ASTM B800, FT4/IEEE 1202, and Federal Specification A-A59544 standards |
| Application | Hospitals, clinics, and other medical facilities |
Explore related products
What You'll Learn
- Ensure compliance with regulations and standards, such as NEC and UL
- Understand grounding requirements for patient care areas
- Choose the right cable type: MC, AC, or a specialised variety
- Prepare the cable for installation, including cutting and stripping
- Connect the cable, following manufacturer instructions and best practices
Ensure compliance with regulations and standards, such as NEC and UL
To ensure compliance with regulations and standards, such as the National Electrical Code (NEC) and Underwriters Laboratories (UL), there are several important considerations to make when installing hospital-grade Metal Clad (MC) cable.
Firstly, it is imperative to understand the specific requirements outlined in the NEC for patient care areas within healthcare facilities. According to Article 517 of the NEC, the regulations apply to the patient care spaces of all healthcare facilities, including hospitals, nursing homes, clinics, and medical offices. This means that the selected MC cable must meet the requirements specified in NEC 517.13(A) and (B). Specifically, NEC 517.13(A) requires the use of a metallic wiring method, such as a metal raceway or cable assembly, that serves as an effective ground-fault current path and qualifies as an Equipment Grounding Conductor (EGC) per Section 250.118. Additionally, NEC 517.13(B) mandates the use of an insulated copper EGC, which is separate from the metallic wiring method.
It is important to note that standard MC cable does not typically meet the requirements of NEC 517.13(A) due to the sheath's inability to serve as an equipment ground. Therefore, it is recommended to use MC All-Purpose Cable (MCAP) or Health Care Facility (HCF) grade MC cable, which includes an insulated green equipment grounding conductor, ensuring compliance with NEC 517.13(B).
Furthermore, when installing hospital-grade MC cable, it is crucial to follow the manufacturer's instructions and use listed connectors. Inspectors may require the bonding strip to be wrapped around the cable armour before inserting it into the connector, as per some installation instructions. This ensures compliance with UL standards, as locknuts and screws can loosen over time, affecting the integrity of the armour ground.
In addition to NEC and UL standards, local and national building codes, as well as healthcare-specific regulations, must be considered to ensure full compliance. These regulations may vary depending on the specific type of healthcare facility and the location of the installation within the building. For example, hospital-grade receptacles are mandatory for inpatient sleeping beds or procedure tables in critical care areas, as outlined in NEC 517.18(B).
By carefully adhering to the requirements set forth by the NEC, UL, and other applicable standards and regulations, installers can ensure the safe and compliant installation of hospital-grade MC cable in healthcare facilities.
