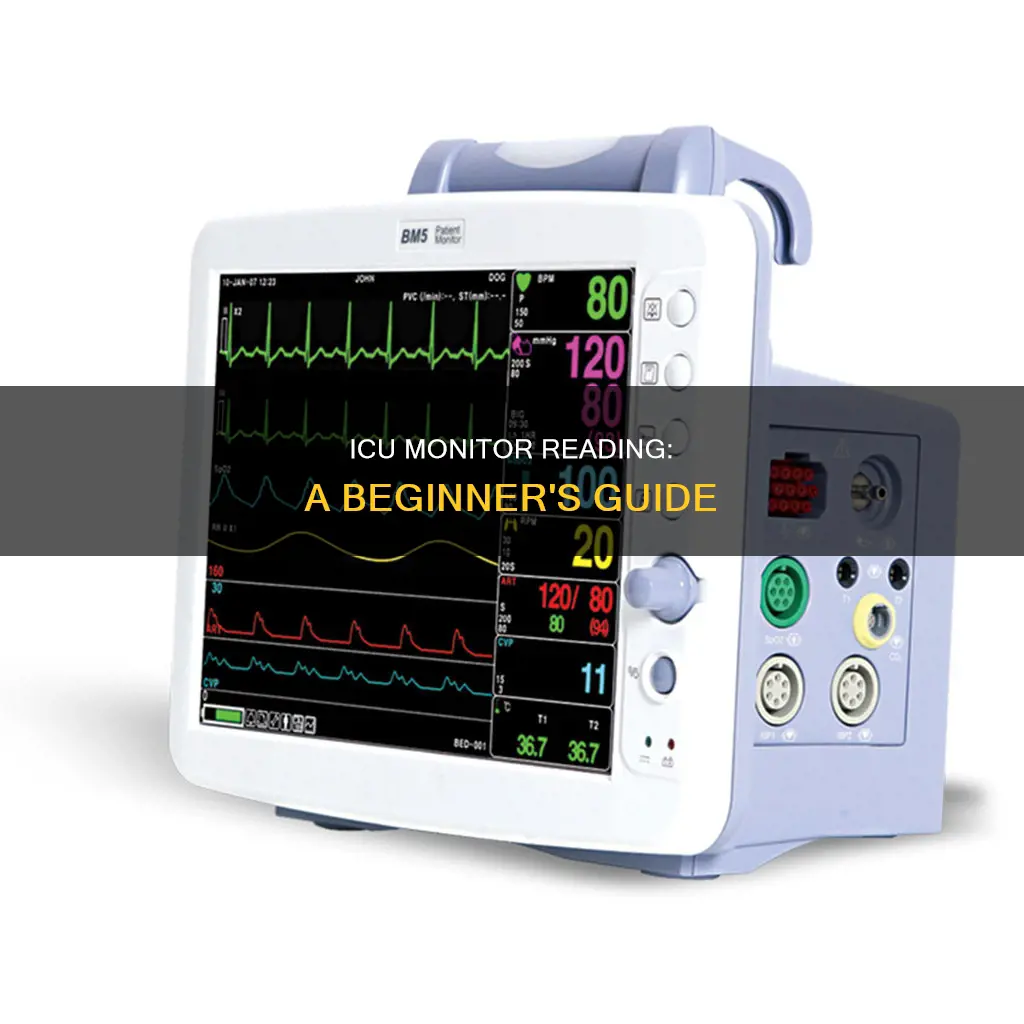

Reading a hospital ICU monitor can be intimidating due to the many multi-coloured numbers and wavy lines. However, with the basics of monitor interpretation, one can become a valuable member of the Emergency Department team. ICU monitors are vital sign monitors that collect a patient's real-time data, helping healthcare professionals identify signs of deterioration and reducing manual errors. They are usually placed at the bedside, allowing doctors to conveniently read vital signs and make informed decisions. These monitors use particular sensors to monitor specific areas of a patient. For instance, sensors are attached to a patient's chest to monitor heart function. The heart rate is usually displayed using green numbers in the top right corner, with the letters HR or PR following the number. The blood pressure reading is also identifiable by the letters that follow it. The systolic and diastolic numbers represent the top and bottom numbers of the blood pressure reading, respectively. Additionally, the respiratory rate is reported in breaths per minute, with normal values between 12 and 20. Oxygen saturation levels are measured on a scale of up to 100%, with a target range of 95-100%. The body temperature is displayed under TEMP, with the average ranging from 97.8 ° to 99.1 ° Fahrenheit. If vital signs fall outside healthy levels, the monitor will sound an alarm, alerting caregivers to potential issues.
| Characteristics | Values |
|---|---|
| Purpose | To monitor patients' vital signs and alert clinicians to any abnormalities |
| Components | Heart rate, blood pressure, body temperature, respiratory rate, ECG readout, oxygen saturation, carbon dioxide, invasive blood pressure, non-invasive blood pressure, respiratory waveform, SpO2 waveform, CO2 waveform, IBP waveform |
| Display | Numerical vital signs on the right, waveforms on the left; heart rate in bold, colourful numbers in the top right corner, usually with “HR” or "PR" next to it; blood pressure reading identifiable by letters that follow |
| Sensors | Small sensors attached to the body via clips or sticky patches |
| Alerts | Warning sounds and flashing colours when vital signs rise or fall outside healthy levels; louder, faster, or higher-pitched beeping when vital signs spike or drop sharply |
| Limitations | Respiratory rate is unreliable and should be measured manually; ECG readout typically represents only one lead and is not intended for detailed analysis |
| Benefits | Convenient and efficient way to track patients' health, allowing for early spotting and dealing with emergencies, and resulting in shorter hospital stays |
| Cost | Depending on functions and modernity, a patient monitor can cost under $2,000 or much more |
Explore related products
What You'll Learn
Understanding the basics of patient monitor interpretation
The first thing to know about patient monitors is that they can be overwhelming at first. With their many numbers, waveforms, and sounds, it can be challenging to know what to look for. However, understanding the basics of patient monitor interpretation is crucial, especially in a busy Emergency Department.
Vital Signs Monitoring
Vital signs monitors enable clinicians to quickly and efficiently evaluate patients inside or outside a hospital setting. These monitors collect real-time patient data, helping healthcare professionals identify signs of deterioration and make informed decisions. They also reduce manual errors by automatically sending data to electronic medical records.
The most basic monitors typically show heart rate, blood pressure, and body temperature. More advanced monitors may also display respiratory rate, oxygen saturation, carbon dioxide levels, and invasive/non-invasive blood pressure.
Understanding the Layout
The common layout of a patient monitor screen is split into two sections. The right side displays numerical vital signs, often with bold, colorful numbers. Heart rate, for example, is usually in the top right corner, identified by "HR" or "PR" for pulse rate. The left side of the screen shows waveforms, such as the respiratory waveform, SpO2 waveform, CO2 waveform, and IBP waveform.
Alarm Systems
Patient monitors are equipped with alarm systems that alert clinicians when vital signs fall outside the normal range. This typically involves a beeping noise, flashing colors, and a highlighted problem reading. However, it's important to note that alarms can be triggered by factors such as loose sensors or patient movement, so always check the patient and ensure proper sensor attachment.
Respiratory Rate (RR)
While patient monitors display respiratory rate under "RR," this reading may not always be accurate, especially as the patient's breathing rate fluctuates. It is recommended to manually measure RR as it is a sensitive indicator of illness.
ECG Readout
The ECG readout on the patient monitor is typically not intended for detailed analysis as it usually represents only one lead. Instead, it is useful for guiding acute resuscitations or managing arrhythmias, providing some information on the electrical activity of the heart. For detailed cardiac analysis, a 12-lead ECG is recommended.
Ashley Judd's Hospitalization: What We Know So Far
You may want to see also
Explore related products
How to spot abnormalities
Hospital monitors are used to keep track of a patient's vital signs, such as heart rate, blood pressure, body temperature, and breathing rate. They are essential for continuous care, especially for critically ill patients in the ICU. While the monitors can vary across hospitals, here are some key ways to spot abnormalities:
Heart Rate and Rhythm
Look for the electrocardiogram (ECG) waveform at the top of the monitor, which records the electrical activity of the heart. Each spike or peak corresponds to a heartbeat. A regular heartbeat will have spikes that are evenly spaced. If the spikes are too close or too far apart, it may indicate an irregular heartbeat. The ECG can also show if the heart is beating too fast or too slow, which may require immediate attention.
Blood Pressure
Blood pressure readings are displayed as two numbers, such as 120/80 mmHg. The top number (systolic) measures the pressure when the heart beats, while the bottom number (diastolic) measures the pressure when the heart is at rest between beats. Normal blood pressure is generally around 120/80 mmHg. If the numbers deviate significantly from this range, it may indicate an issue.
Body Temperature
The normal temperature range for adults is 97.8 to 99 °F (36.6 to 37.2 °C). This is usually the second number displayed on the monitor, under the pulse rate. A fever is indicated by a temperature above 99 °F (37 °C), while hypothermia is indicated by a temperature below 95 °F (35 °C). Keep in mind that body temperature can fluctuate due to activity, eating, or sleeping.
Respiratory Rate and Oxygen Saturation
The patient's respiratory rate is the number of breaths they take per minute. The average respiration rate for an adult at rest is 12 to 16 breaths per minute. If the rate falls below 12 or exceeds 25, it may be considered abnormal. The monitor may display this information as "Resp Rate" or a similar label. Oxygen saturation levels are typically monitored using a pulse oximeter, a small clip on the patient's finger or toe. Normal oxygen saturation levels are between 95% and 100%. If oxygen saturation drops below 90%, the patient may require supplemental oxygen.
Overall Interpretation
While it's important to understand each individual vital sign, remember to interpret them together in the context of the patient's overall clinical picture. A single abnormal reading may be an outlier, influenced by factors such as pain, emotions, or hydration status. Consider all the vital signs collectively to better understand the patient's health status and spot any potential abnormalities.
Understanding University Hospital Facility Fee Charges
You may want to see also
Explore related products
The meaning of different alarms
Hospital monitors are essential for tracking a patient's health in real-time, especially for those in critical condition or undergoing surgery. They display vital signs such as heart rate, blood pressure, breathing rate, and sometimes oxygen levels. These are shown through numbers, waveforms, and colours.
Alarms are designed to alert caregivers of any changes in a patient's condition. They are also used to indicate when a sensor has become disconnected or is malfunctioning. When a vital sign rises or falls outside healthy levels, the monitor will typically sound a warning beep and flash a colour. If the vital sign continues to spike or drop sharply, the alarm may get louder, faster, or change in pitch.
The alarms are coded with colours to indicate the severity of the issue. A green alarm icon means the alarm sound is on. A yellow alarm icon means the alarm sound is temporarily off but will automatically turn on after 2 minutes or when a new alarm happens. A red alarm icon means the alarm sound is off, which is normal if the alarm volume is set to zero in the system settings. Red is also used to signal critical values, such as dangerously high or low heart rates, blood pressure, or oxygen levels.
There are several common alarms generated by patient monitors. These include high and low alerts for parameters such as heart rate, blood pressure, respiratory rate, and oxygen saturation. These alarms indicate when a parameter has exceeded a predetermined range and may require intervention. Patient monitors can also generate alarms for irregular heart rhythms or arrhythmias, which may indicate a potentially dangerous condition requiring immediate attention.
Outpatient Surgery: Does It Count as ASC?
You may want to see also
Explore related products
![Waveform [v2] Window Entry Cable: Low-Loss, Ultra Flat-Ribbon 4-in-1 Passthrough Cable | SMA Male to SMA Female | for Windows and Doors](https://m.media-amazon.com/images/I/614M5IdrnXL._AC_UL320_.jpg)
How to read vital signs
Vital signs monitors are portable devices that enable clinicians to quickly and efficiently evaluate their patients in or out of hospital settings. They collect a patient's real-time data, help identify signs of deterioration, and reduce manual errors by automatically sending data to the patient's electronic medical record.
The most basic monitors show heart rate, blood pressure, and body temperature. More advanced models also show how much oxygen the blood is carrying or how fast the patient is breathing. They use numbers, waveforms, and alarms to show if everything is normal or if medical attention is needed.
The typical layout includes numerical vital signs on the right and waveforms on the left. Heart rate is typically presented at the top of the monitor in green, with the number identified by "HR" or "PR" (pulse rate) beside or above it and is presented in beats per minute (BPM). A normal adult has a resting heart rate of between 60 and 100 BPM, although people who are more active can have slower heart rates.
Blood pressure is typically presented on the screen under "'SYST' or 'SYS' for systolic and 'DIAS' or 'DIA' for diastolic. Systolic blood pressure is the top number and is measured when the heart contracts and pumps blood through the body. Diastolic blood pressure is the bottom number and is measured when the heart relaxes and the ventricles refill with blood. An average blood pressure reading is around 120/80.
Oxygen saturation (SpO2) is a measure of the amount of oxygen in the patient's blood. Normal oxygen levels are between 95 and 100, with anything below 90 indicating that a patient is not receiving enough oxygen.
Body temperature is usually displayed under "TEMP" and is reported in degrees Fahrenheit or Celsius. The normal range for adults is 97.8 to 99 °F (36.6 to 37.2 °C). A body temperature over 99 °F (37 °C) is considered a fever, while anything below 95 °F (35 °C) is considered hypothermia.
It's important to remember that a single number outside the normal range is usually not a cause for concern. Doctors and nurses will look at the vital signs together and take the context into consideration.
Paging Protocols: Effective Hospital Communication
You may want to see also
Explore related products
How to interpret waveforms
Waveforms are graphical representations of electrical signals generated by the heart, lungs, and brain. They are displayed on the left side of the monitor and provide a general overview of the patient's real-time vitals. The most common waveforms on an ICU monitor are the electrocardiogram (ECG), pulse oximetry (SpO2), and capnography (EtCO2).
Electrocardiogram (ECG)
The ECG measures the electrical activity of the heart and is usually the top wavy line on the monitor. Each spike or peak corresponds to a heartbeat. If the patient has a regular heartbeat, these spikes will occur at regular intervals.
Pulse Oximetry (SpO2)
The SpO2 waveform measures the oxygen saturation of the blood and tracks blood flow and oxygen circulation. It appears as a wavy line below the ECG and each crest should align with an ECG spike, indicating efficient oxygenated blood flow.
Capnography (EtCO2)
The EtCO2 waveform measures the concentration of carbon dioxide in the patient's breath.
Respiratory Waveform
The respiratory waveform, usually displayed in yellow or white, helps clinicians monitor any respiratory issues such as apnea (stopped breathing) or dyspnea (difficulty breathing).
Blood Pressure Waveform
The blood pressure waveform provides valuable information about a patient's cardiovascular health. It consists of three distinct phases: the P wave, T wave, and D wave. The P wave represents the pressure build-up during atrial contraction, the T wave represents the rapid pressure drop during ventricular ejection, and the D wave represents the pressure decrease during diastole.
Temperature Waveform
The temperature waveform indicates the patient's core body temperature, which is essential for assessing overall health and guiding treatment decisions. Normal body temperature ranges between 97.6-99.6°F (36.4-37.6°C). A temperature above 99°F (37°C) is considered a fever, while a temperature below 95°F (35°C) is considered hypothermia.
Hospitals: Drug Screening Verification Requirements
You may want to see also
Frequently asked questions
Patient monitors allow medical staff to track, access, and record patients' vital signs, providing a convenient and efficient way to monitor their health. They help doctors make informed decisions and save time, and they ensure nurses can consistently monitor patients and quickly pass on any concerning changes to doctors.
If the alarm sounds, this could indicate a serious issue such as a sudden drop in O2 saturation or BP. However, it's important to note that alarms can also be set off by non-clinical issues, such as a loose sensor. Always check that all wires and probes are properly attached and secured. If you are concerned, find your senior resident or staff as soon as possible.
Heart rate is typically displayed using green numbers in the right corner of the screen. The number is shown in beats per minute (BPM) and is identified with HR, RR, or ECG next to or above it.
The SpO2 Waveform can help determine if there are any issues with circulation or peripheral perfusion. The CO2 Waveform helps visualize how much CO2 a patient is exhaling. The IBP Waveform helps visualize invasive blood pressure.
