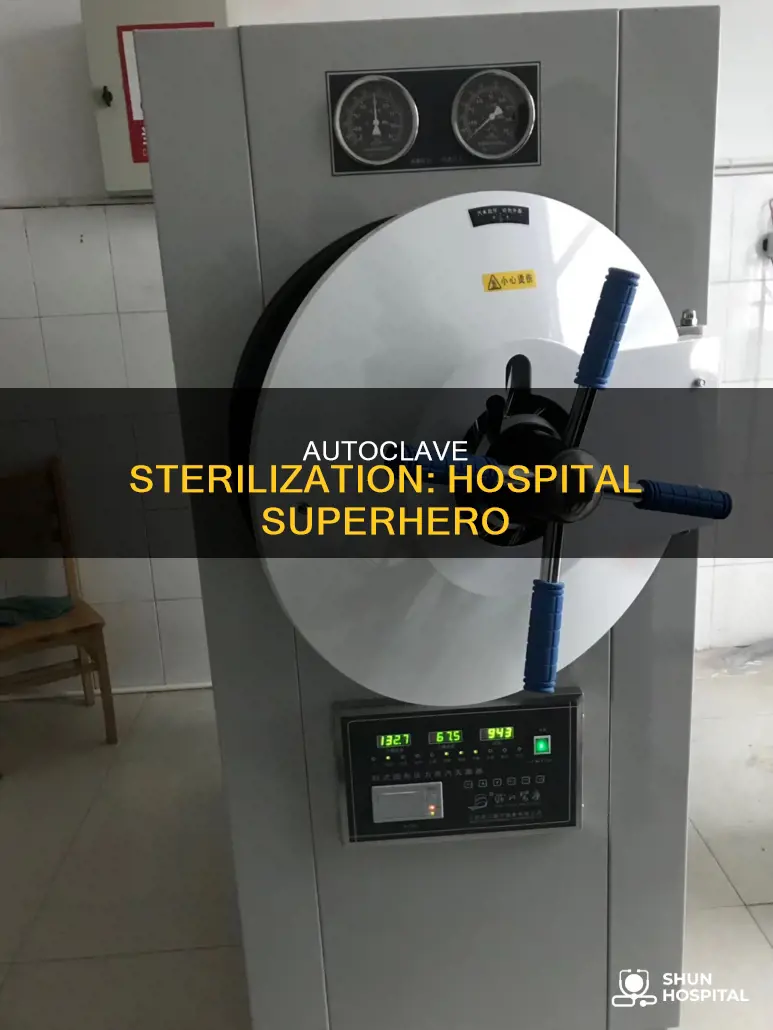

Autoclaves are machines used to sterilize equipment and supplies in hospitals, laboratories, and other settings. They use steam and pressure to kill microorganisms and their spores, preventing the spread of infections. Autoclaves are designed to raise temperatures above the boiling point of water, typically to 121°C (250°F) or 132°C (270°F), for a minimum of 15-30 minutes, depending on the load and its contents. They are categorized by class, function, and capacity, with various types such as pass-through, large capacity, and hinged autoclaves serving different purposes. Autoclaves are essential for maintaining sterile environments in hospitals, ensuring that surgical tools and other equipment are free from contamination.
| Characteristics | Values |
|---|---|
| Definition | A machine used to carry out industrial and scientific processes requiring elevated temperature and pressure. |
| Use | Sterilization of equipment and supplies, especially before surgical procedures. |
| Temperature | 121 °C (250 °F) is the minimum temperature required to kill microorganisms. Other common temperatures include 132°C (270°F) and 135°C. |
| Time | 30-60 minutes at 121 °C (250 °F). Shorter times are required at higher temperatures, e.g. 4 minutes at 132 °C. |
| Pressure | 103 kPa at 121 °C (250 °F). Pressure is used to obtain high temperatures. |
| Steam | Dry saturated steam with a dryness fraction ≥97%. |
| Design | Rectangular designs are common in hospitals due to their continuous use. Hinged autoclaves have a single door with a radial-arm hinge, while pass-through autoclaves have doors on either side of the chamber to prevent cross-contamination. |
| Size | Large autoclaves have capacities exceeding 200 liters and are built for high-volume sterilization. |
| Maintenance | Demanding maintenance regimens and costly to operate due to high water and energy consumption. |
| Safety | Should not be opened while operating. Should not be used with flammable, reactive, corrosive, toxic, or radioactive materials. |
Explore related products
What You'll Learn
Autoclave design and function
Autoclaves are machines designed to sterilize materials, instruments, and equipment by exposing them to steam under pressure at high temperatures. The name autoclave comes from the Greek "auto" meaning self and the Latin "clavis" meaning key, thus referring to a self-locking device.
The basic principle of autoclave sterilization is to expose items to direct steam contact at a specific temperature and pressure for a specified time. The minimum temperature required for sterilization is 121°C (250°F), and common sterilization times range from 4 minutes to 60 minutes. The steam is generated by heating water in a steam generator or steam jacket located underneath the chamber. The steam is then fed into the main chamber, and the pressure is increased, which in turn raises the temperature. The high temperatures and pressure help kill microorganisms and their spores, ensuring sterilization.
Autoclaves are typically categorized by their class, function, and capacity, with three main classes: Class B, Class N, and Class S. They are also designed with different features depending on their intended use. For example, pass-thru autoclaves are designed for environments requiring strict control over sterilization zones, such as hospitals and pharmaceutical manufacturing, and have doors on either side of the chamber to prevent cross-contamination. Large capacity autoclaves are built for high-volume sterilization and can accommodate large trays and containers. Hinged autoclaves, on the other hand, feature a single door with a radial-arm hinge for easy access and are suitable for small to mid-sized facilities.
In terms of sustainability, autoclaves consume large amounts of water and energy, so manufacturers have developed innovative ways to reduce their environmental impact. Some modern autoclaves reduce water consumption or recycle consumed water, while others feature control systems that automatically turn off the machine when not in use, reducing energy consumption.
Pregnancy Test Accuracy: Hospital vs. Home
You may want to see also
Explore related products
Autoclave uses in hospitals
Autoclaves are machines used to sterilise equipment and materials in hospitals. They are particularly useful for sterilising surgical tools and other instruments such as speculums, scopes, and scrapers. Autoclaves work by using pressurised steam and superheated water to kill microorganisms and their spores, which can cause infections. The steam is generated in a pressure chamber and fills the main chamber of the autoclave, raising the temperature and pressure to the desired level. The minimum temperature required for sterilisation is 121°C (250°F), and this temperature must be maintained for a minimum time of 30 minutes to effectively kill microorganisms.
There are different types of autoclaves, including large capacity autoclaves, pass-through autoclaves, and hinged autoclaves. Large capacity autoclaves have capacities exceeding 200 litres and are essential for hospitals, pharmaceutical manufacturers, and industrial facilities where large quantities of materials or oversized equipment need to be sterilised regularly. Pass-through autoclaves are designed for environments that require strict control over sterilisation zones, with doors on either side of the chamber to prevent cross-contamination. Hinged autoclaves feature a single door with a radial-arm hinge for easy access and are well-suited for applications that require frequent access to the autoclave chamber.
Autoclaves are also used in hospital settings for waste treatment and sterilisation before disposal, as well as for processing laboratory media, water, and pharmaceutical products. They are optimised for continuous hospital use and are designed with rectangular shapes to facilitate their operation and maintenance. However, they are costly to operate due to their high water and energy consumption.
Overall, autoclaves are crucial in hospitals for sterilisation purposes, ensuring that equipment and materials are free of microorganisms that could cause infections or affect sensitive environments.
Level 6 Hospitals in Kenya: How Many Exist?
You may want to see also
Explore related products
![McKesson Multi-Enzymatic Cleanser for Surgical Instruments & General Healthcare Equipment, 1 Gallon [Pack of 1] Fresh Mint](https://m.media-amazon.com/images/I/61hBk7GU5tL._AC_UL320_.jpg)
Autoclave sterilisation process
Autoclaves are machines used to sterilise surgical equipment, laboratory instruments, pharmaceutical items, and other materials. They are also used to sterilise medical waste before disposal. Autoclaves are essential in hospitals, clinics, and laboratories, where they are used to sterilise solids, liquids, hollows, and instruments of various shapes and sizes.
The autoclave sterilisation process involves placing items in a chamber and heating them above the boiling point of water. The basic principle of steam sterilisation is to expose each item to direct steam contact at the required temperature, pressure, and time. The two common steam-sterilising temperatures are 121°C (250°F) and 132°C (270°F). These temperatures must be maintained for a minimum time to kill microorganisms. The minimum sterilisation time at 121°C is 30 minutes, while at 132°C, it is 4 minutes.
The two basic types of steam sterilisers (autoclaves) are gravity displacement autoclaves and high-speed prevacuum sterilisers. Gravity displacement autoclaves use steam, which is lighter than air, to force air out of the chamber through a drain vent. This type of autoclave is used to process laboratory media, water, pharmaceutical products, and non-porous articles. High-speed prevacuum sterilisers, on the other hand, use a vacuum pump to ensure air removal from the chamber before steam is admitted. This results in instantaneous steam penetration, even into porous loads.
It is important to follow proper loading, use, and unloading procedures when operating an autoclave to prevent accidents and burns. Only compatible materials such as borosilicate glass, polypropylene plastic, or stainless steel can be used in autoclaves due to the high temperatures and pressures involved. Additionally, items should be wrapped or bagged in steam-penetrable paper or loosely covered with aluminium foil to ensure proper steam penetration.
Food Poisoning: Hospital Treatment and Recovery
You may want to see also
Explore related products
Autoclave maintenance and safety
Autoclaves are machines used to sterilise surgical tools and other equipment in hospitals and laboratories. They work by exposing items to direct steam contact at high temperatures and pressure for a specified time, killing all microorganisms and their spores.
Autoclaves require demanding maintenance regimens and are costly to operate. They use thousands of gallons of water each day, with correspondingly high electric power consumption. To reduce autoclave downtime, equipment malfunction, and other risk factors, routine preventative maintenance should be performed.
It is important to check inside the autoclave prior to loading materials, as debris from previous cycles can collect in the chamber or on the drain strainer and prevent the unit from properly sterilising equipment. When sterilising liquid loads, containers should be loosely sealed to prevent explosions and scalding, and a liquid sterilisation cycle should be selected. The autoclave should never be overloaded, to prevent items from bumping into and potentially damaging each other.
Only compatible materials such as borosilicate glass, polypropylene plastic, or stainless steel can be used in autoclaves. Laboratory personnel should carefully inspect all glassware for cracks, as cracked glassware can easily break under intense pressure. All plastics should be checked to ensure they are autoclave-safe, as certain plastics can melt at the high temperatures autoclaves operate at.
To avoid bodily harm when operating an autoclave, laboratory personnel should be aware of the potential hazards and necessary safety precautions. All individuals should undergo comprehensive training customised to the particular make and model of the unit. Personal protective equipment should always be worn, including a lab coat, heat-resistant gloves, safety glasses or goggles, and close-toed shoes.
Finding Folsom Hospital Results: A Quick Guide
You may want to see also
Explore related products
Autoclave history
The autoclave was invented by French microbiologist Charles Chamberland in 1879. Chamberland worked with Louis Pasteur at the Pasteur Institute, studying chicken cholera and anthrax, which were killing large numbers of animals in French agriculture. Chamberland discovered that heating certain porous materials could keep hold of fine particles in suspension. This discovery led to significant advances in sterilization and disinfection. During his research, he realized that heating a liquid to 115°C and holding it for at least 20 minutes would kill certain spores. This insight into heat and time would lead to his invention of the autoclave.
The autoclave's precursor was invented 200 years earlier by French physicist Denis Papin. Known as the steam digester, Papin's invention was essentially the same as a modern pressure cooker. The steam digester consisted of a tightly sealed vessel that contained steam until high pressure was achieved. It was the first pressure cooker to feature a safety valve, which released steam when pressure became too great in the chamber, preventing explosions.
Since its invention, the autoclave has come a long way, with various improvements to its design. One such improvement was the ability to utilize steam pulsing, where steam is injected into the chamber intermittently, pushing the steam into porous or irregular areas. Another innovation was the vacuum system autoclave, which uses a vacuum to pull out all the air and achieve pressurization. Today, autoclaves feature safety mechanisms to prevent over-pressurization or explosions, digital displays, and monitoring systems for every part of the sterilization process.
Shane's Betrayal: Leaving Rick in the Hospital
You may want to see also
Frequently asked questions
An autoclave is a machine used to carry out industrial and scientific processes requiring elevated temperature and pressure. Autoclaves are used to sterilize equipment and supplies by subjecting them to pressurized saturated steam.
Autoclaves are used in hospitals to sterilize surgical tools, lab equipment, and other materials. Sterilization is the process of killing microorganisms and their spores to prevent infection.
Autoclaves use steam heat to kill microbial life on contaminated loads. The air is removed from the chamber and steam is introduced at a controlled rate, allowing the steam to increase in temperature. The chamber is then filled with steam until the desired pressure and temperature are reached.
